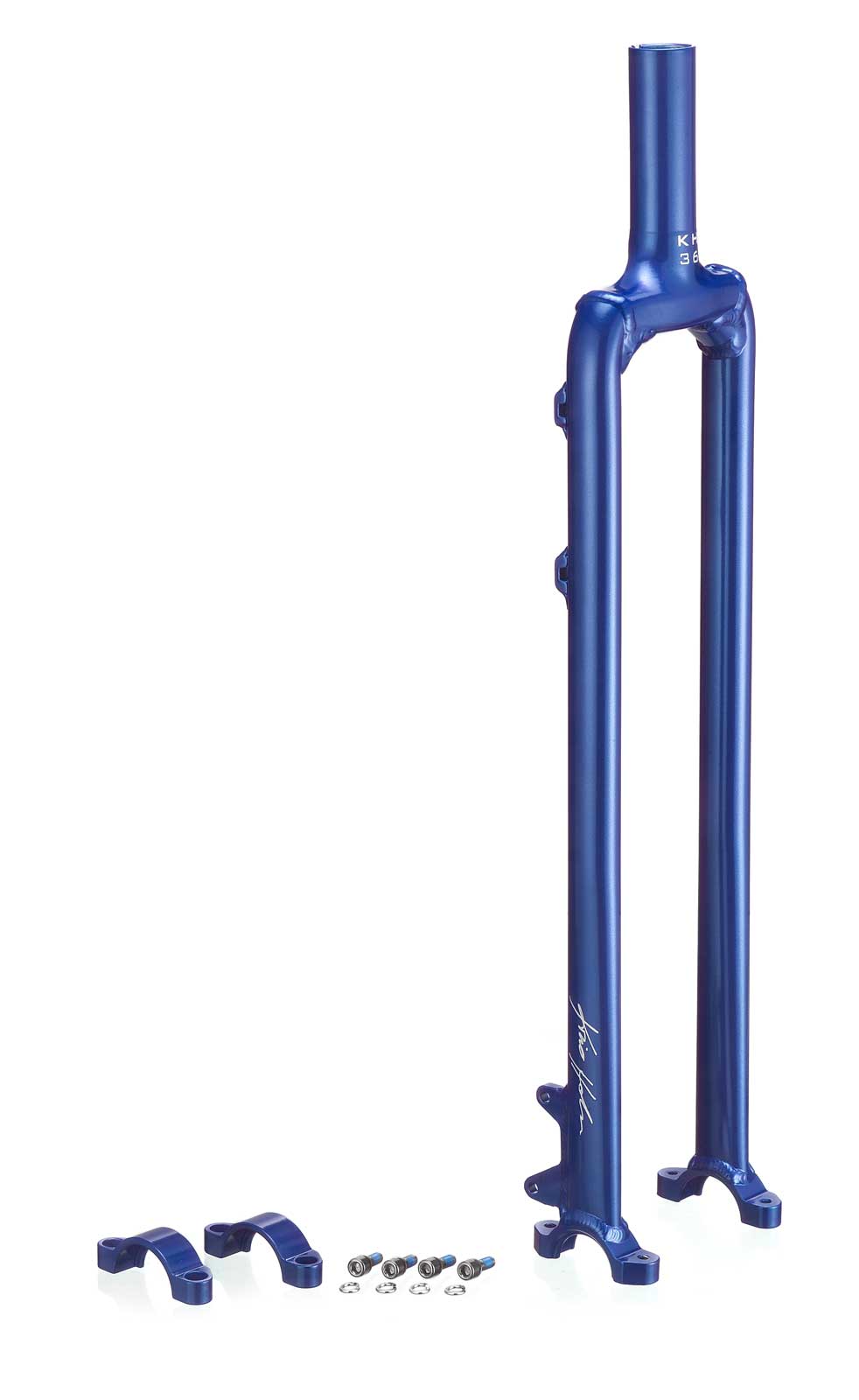

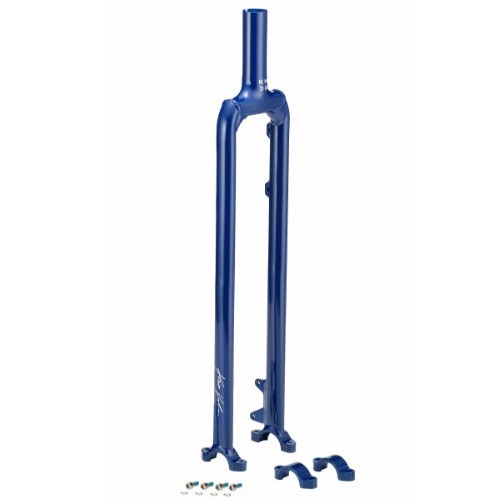

Kris Holm 36" Frame

$165.00
Quantity:

Product Description

KH frames balance the competing requirements of strength, weight, and stiffness, refined through years of evolution and testing by trials, muni, distance World Champions and backcountry adventurers.

Made from 7005 aluminum, the one piece forged fork crown and neck incorporates the best characteristics of both flat top and rounded designs, with a stable platform and rounded corners to avoid bashed knees. Different tube diameters and sidewall thicknesses are used in different parts of the frame to optimize strength weight ratio.

The seatpost tube is closed at the bottom to prevent entry of mud. The fork blades are ovalized and stiff in both lateral and twisting directions - important for avoiding rim brake rub. The 24” and larger frames come with both Magura™ rim brake and Spirit disk brake compatible mounts.


Features:

Size: 36"
Length of seat tube: 110mm
Material: 7005 Forged aluminum machined bearings, disk brake and magura brake mounts (Magura brake adapters not included)
Horizontal Crown Width: 93mm
Inside diameter seat tube: 27.2mm (seat post diameter)
Outside diameter seat tube: 31.8mm (clamp inside diameter)
Diameter Bearing holder: 42mm (bearing outside diameter)
Bearing pitch: 100mm (center bearing to center bearing)
Weight: 806g (incl. bearing holders and bolts)
Comes with: bearing housing, screws and double bolt seat clamp

Specifications

Color - Frame:
Blue
Bearing Size:
22x42x12mm
Wheel Size:
36 inch

Related Items

Write Review

  1. KH36" 5 Star Review

    Posted by on Dec 30th 2015

    Very solid frame, high quality and beautiful construction. The bottom of the seat post is closed off, which keeps mud, rocks snow and water from getting up in the post and frame. The blue paint looks great and is really a good color for the Uni. Would recommend to anyone wanting to build their own 36er. Very pleased!
